750WH Hydro Excavating Heater Parts

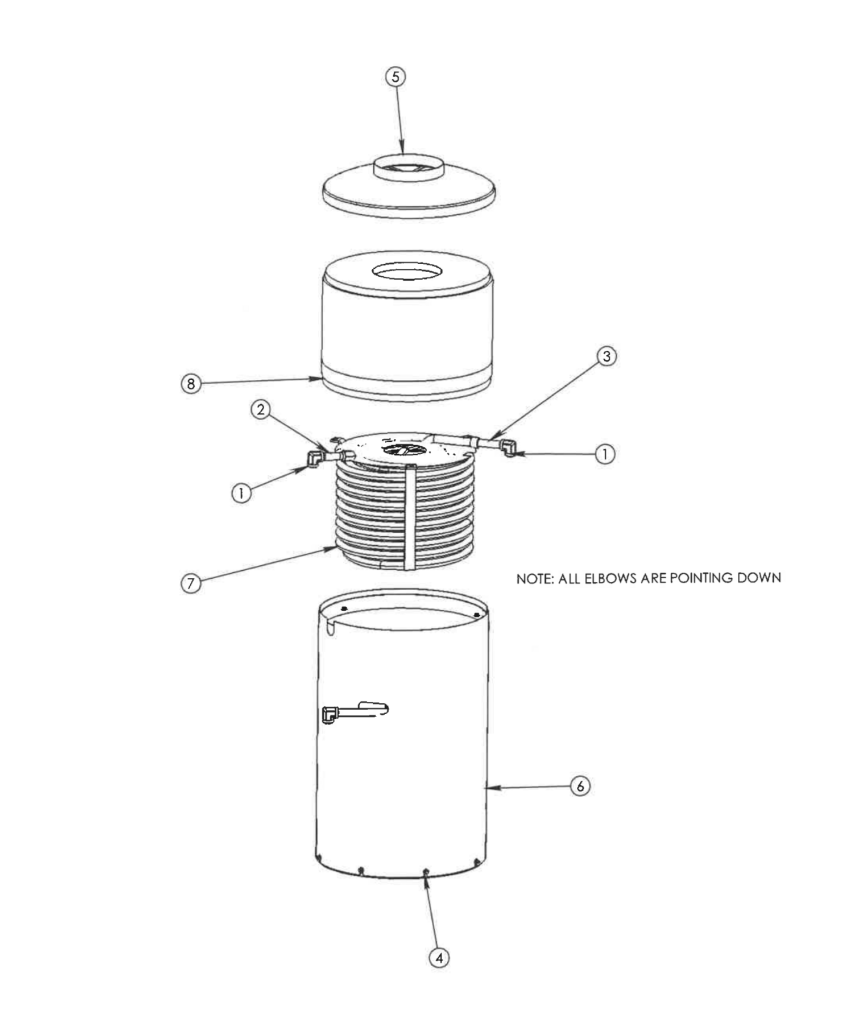

750WH SP6-0139 coil assembly
| ITEM | PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|---|
| 1 | 01-111404 | ELBOW:3/4 x 90 SCH80 | 2 | $28.07 |
| 2 | 01-291700 | NIPPLE 3/4" x 4" SCH 80, GALV | 1 | $25.12 |
| 3 | 01-292004 | NIPPLE 3/4-6" SCH80 | 1 | $41.26 |
| 4 | 02-301300 | 3/8 NUT SERRATED | 11 | $0.17 |
| 5 | B05-0117 | STACK WELDMENT | 1 | $339.34 |
| 6 | B05-0383-1-P | WRAPPER 36" SS CWW WRAP | 1 | $2789.26 |
| 7 | BA5-0079 | COIL WELDMENT | 1 | $2191.41 |
| 8 | K05-0002 | INSULATION KIT | 1 | $146.29 |
*Some coil variation occurs within this coil weldment. Check your specific serial number for coil with sales team when ordering this part.

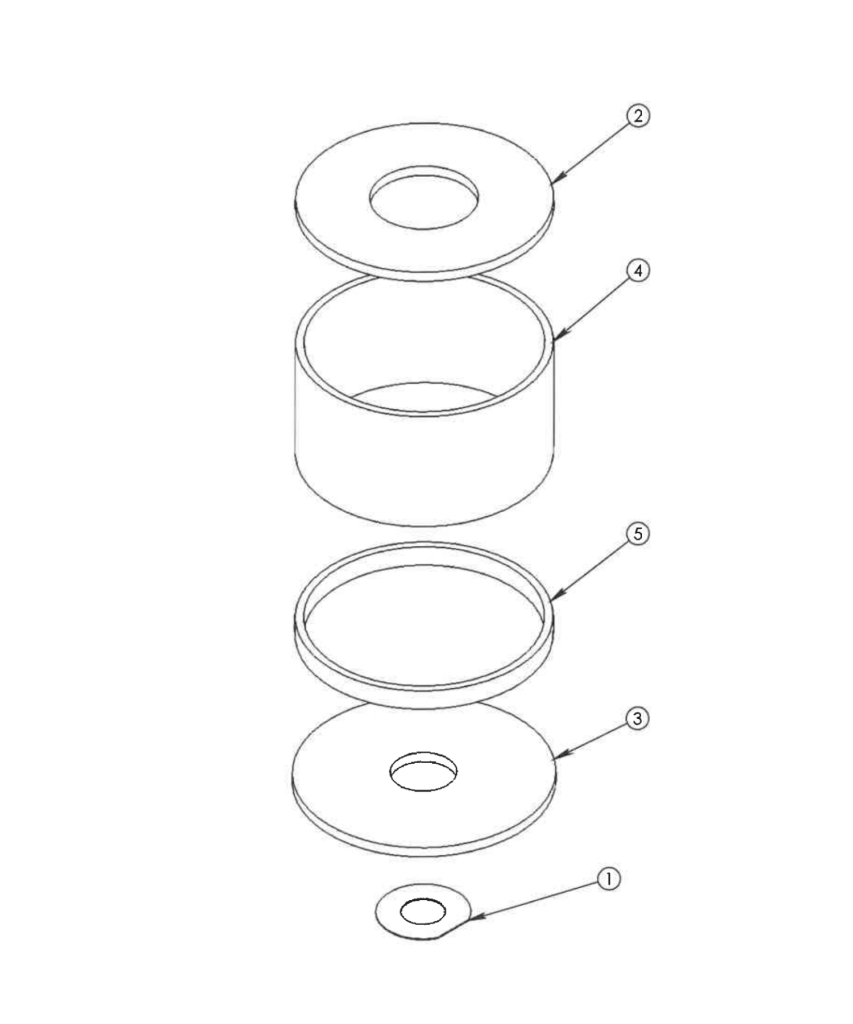

750WH SP6-0139 burner gaskets AND INSULATION
| ITEM | PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|---|
| 1 | 10-111236-1 | BURNER GASKET #31653 | 1 | $7.88 |
| 2 | H05-0002 | STACK HEAD RING 23.5/9.75 | 1 | $44.14 |
| 3 | H05-0006* | BURNER HEAD RING 23 1/2 / 6" I.D. | 1 | $34.07 |
| 4 | H05-0007* | C.W. WRAP TOP GAS / OIL | 1 | $44.87 |
| 5 | H05-0008* | C.W. WRAP BOTTOM GAS | 1 | $28.09 |
Please note that parts with * may have a lead time of up to 4 weeks

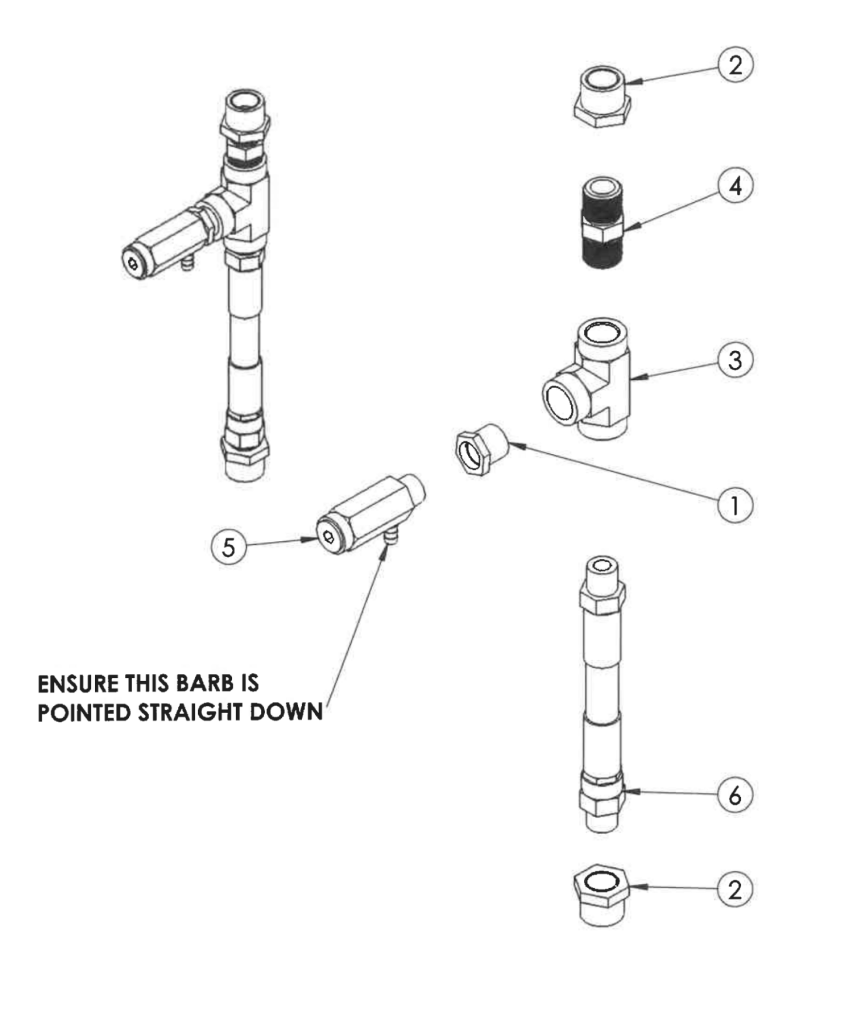

750WH SP6-0139 Pressure RELIEF VALVE
| ITEM | PART # | DESCRIPTION | QTY | Price |
|---|---|---|---|---|
| 1 | 01-101503 | BUSH: 1/2 x 3/8 HEX GALV | 1 | $2.63 |
| 2 | 01-101903 | BUSH: 3/4 x 1/2 HEX GALV | 2 | $4.14 |
| 3 | 01-161304 | TEE, H.D. 1/2" PLATED | 1 | $15.71 |
| 4 | 01-281104 | NIPPLE, 1/2" x 1 1/2", HEX, SCH 80 | 1 | $6.34 |
| 5 | 05-111312 | RELIEF VALVE 6@6000 | 1 | $44.72 |
| 6 | 11-142223 | HOSE 1/2" x 22 1/2" 5000PSI | 1 | $38.45 |

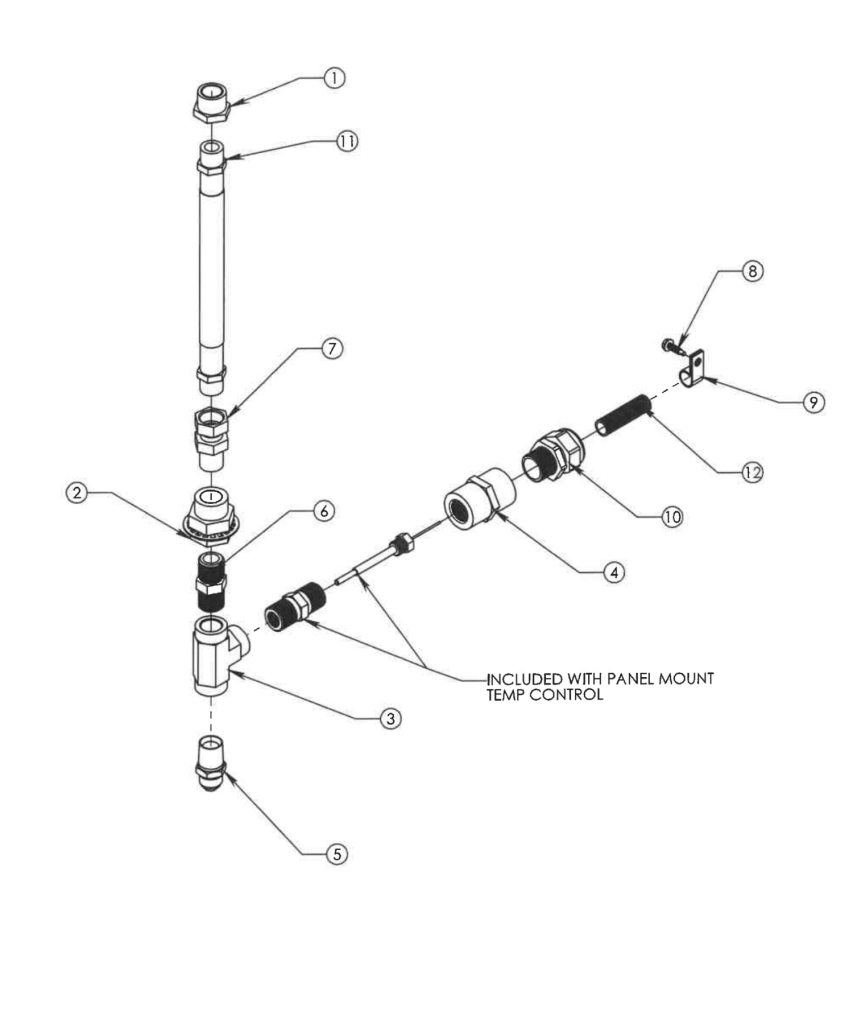

750WH SP6-0139
| ITEM | PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|---|
| 1 | 01-101903 | BUSH: 3/4 x 1/2 HEX GALV | 1 | $4.14 |
| 2 | 01-103001 | WEATHER HEAD: 1/2" BRASS | 1 | $44.15 |
| 3 | 01-161304 | TEE, H.D. 1/2" PLATED | 1 | $17.46 |
| 4 | 01-221310 | COUPLING, 3/4" x 1/2", PVC | 1 | $5.43 |
| 5 | 01-221422 | CONNECTOR: 1/2" JIC x 1/2" MPT | 1 | $5.06 |
| 6 | 01-281104 | NIPPLE, 1/2" x 1 1/2, HEX, SCH 80 | 1 | $6.34 |
| 7 | 01-401800 | SWIVEL ADAPTER | 1 | $19.07 |
| 8 | 02-101400 | SCREW, TEKS #10-16 x 3/4" | 1 | $0.33 |
| 9 | 03-191220 | CLAMP 1/2" ID | 1 | $0.62 |
| 10 | 03-192530 | HEYCO CONN. 3234 3/4" | 1 | $3.19 |
| 11 | 11-144524 | HOSE 4000 1/2" x 45" | 1 | $46.89 |
| 12 | 2120-36* | SPLIT LOOM 3/8" POLY | 1 | $7.83 |
Please note that parts with * may have a lead time of up to 4 weeks

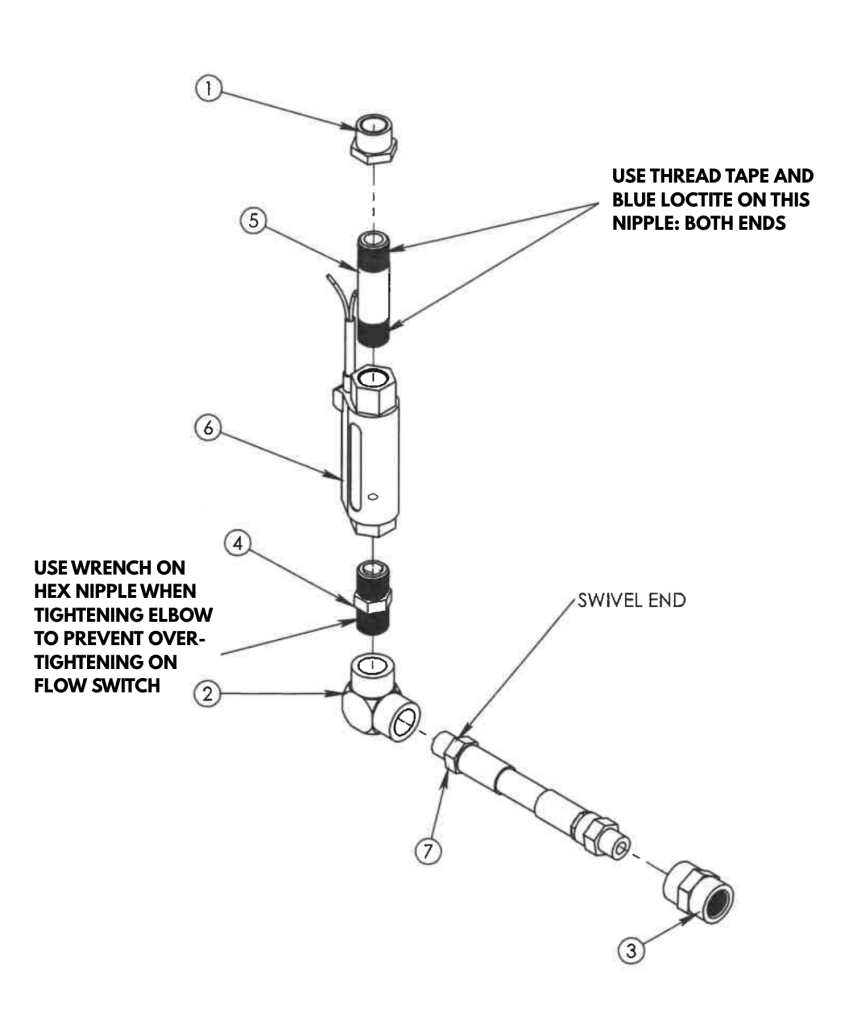

750WH SP6-0139
| ITEM | PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|---|
| 1 | 01-101910* | BUSHING 3/4" x 1/2" HEAVY DUTY SCH160 | 1 | $9.49 |
| 2 | 01-111304 | ELBOW: 1/2 x 90 DEG SCH80 | 1 | $14.87 |
| 3 | 01-201304 | COUPLING, 1/2" PLATED HD | 1 | $9.84 |
| 4 | 01-281104 | NIPPLE, 1/2" x 1 1/2", HEX, SCH 80 | 1 | $6.34 |
| 5 | 01-281409* | NIPPLE, 1/2" x 3" HEAVY DUTY SCH160 | 1 | $45.07 |
| 6 | 04-101530 | HPFS W/48" LEADS (ST 5) | 1 | $188.83 |
| 7 | 11-142223 | HOSE 1/2" x 22 1/2" 5000PSI | 1 | $38.45 |
Please note that parts with * may have a lead time of up to 4 weeks

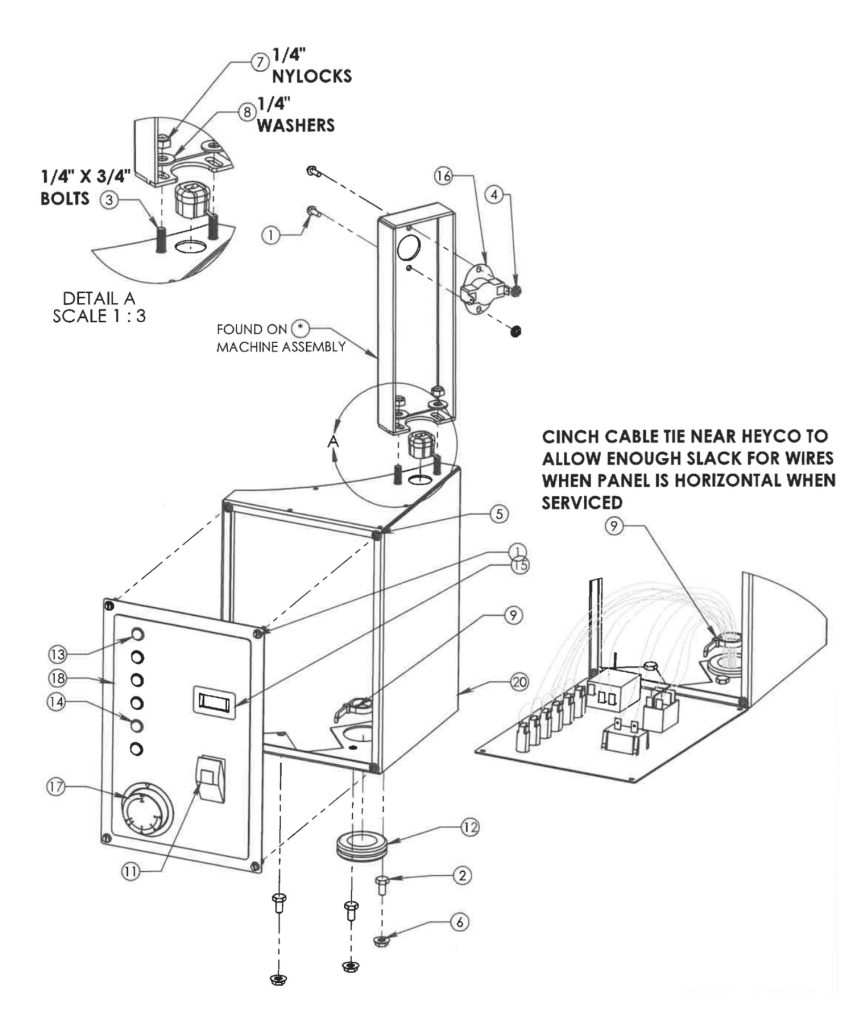

750WH SP6-0139
| ITEM | PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|---|
| 1 | 02-101005 | HEX HEAD WASHER BOLT 8-32 x 1/2" | 6 | $0.17 |
| 2 | 02-111000 | CAP SCREW 1/4-20 x 1/2 | 3 | $0.10 |
| 3 | 02-111100 | CAP SCREW 1/4-20 x 3/4 | 2 | $0.11 |
| 4 | 02-301013 | 8-32" NUT | 2 | $0.07 |
| 5 | 02-301020 | RIVNUT: 8-32" W/HEX | 4 | $0.46 |
| 6 | 02-301100 | NUT, HEX: 1/4-20, SERRATED | 3 | $0.07 |
| 7 | 02-301130 | NUT, HEX: NYLK, 1/4"-20 ZINC | 2 | $0.07 |
| 8 | 02-501100 | WASHER: 1/4", FLAT, ZINC | 2 | $0.04 |
| 9 | 02-531005 | CABLE TIE, RAP TIGHT 5" WHITE | 1 | $0.17 |
| 10 | 03-192000 | CONNECTOR "K" ST BLACK | 1 | $0.33 |
| 11 | 03-211321 | ROCKER SWITCH 24V | 1 | $21.60 |
| 12 | 03-241001 | GROMMET, RUBBER, 1 1/8" | 1 | $1.04 |
| 13 | 03-273025 | INDICATOR LIGHT RED 12V | 1 | $9.52 |
| 14 | 03-273045 | INDICATOR LIGHT GREEN 12V | 5 | $7.88 |
| 15 | 03-291020 | HOUR METER | 1 | $37.26 |
| 16 | 04-000107 | THERMO DISC 200DEG | 1 | $23.88 |
| 17 | 04-101449 | TEMP CONTROL - 220°F | 1 | $57.44 |
| 18 | 26-000060 | DECAL: PANEL OVERLAY | 1 | $9.90 |
| 19 | B06-0103 | CONTROL PANEL | 1 | $22.50 |
| 20 | B06-0104 | CONTROL BOX | 1 | $43.86 |

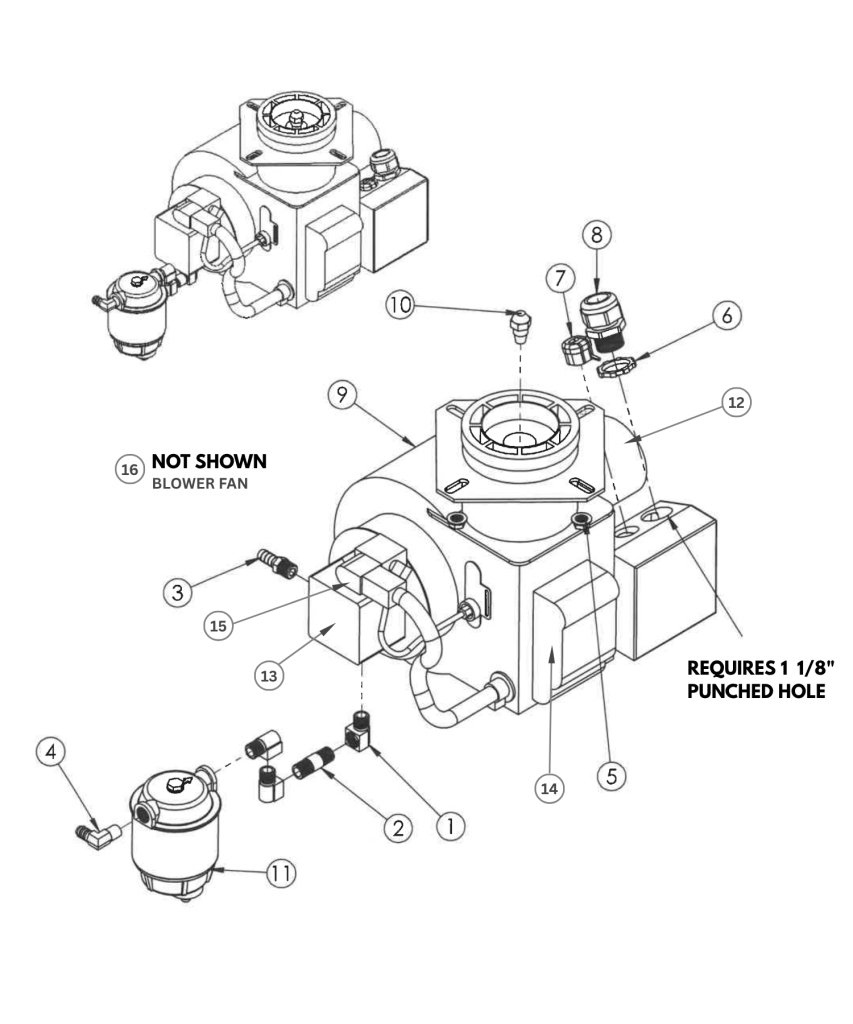

750WH SP6-0139
| ITEM | PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|---|
| 1 | 01-131105 | ELBOW: ST 1/4 x 90° BRASS | 3 | $6.24 |
| 2 | 01-261103 | NIPPLE, 1/4" x 1 1/2", ZINC | 1 | $6.38 |
| 3 | 01-411101 | HOSE BARB 1/4" x 3/8" | 1 | $3.15 |
| 4 | 01-411103 | HOSE BARB 1/4 x 3/8 x 90 | 1 | $4.92 |
| 5 | 02-301300 | 3/8 NUT SERRATED | 4 | $0.17 |
| 6 | 03-191007 | 3/4" CONN NUT STEEL | 1 | $0.42 |
| 7 | 03-192100 | CONNECTOR "W" ST BLACK | 1 | $0.44 |
| 8 | 03-192530 | HEYCO CONN. 3234 3/4" | 1 | $3.19 |
| 9 | 10-111059-2 | BURNER | 1 | $1931.19 |
| 10 | 10-202003 | NOZZLE OIL 3.5-90 DEG A | 1 | $20.32 |
| 11 | 10-301250 | WATER SEP. FLTR | 1 | $94.50 |
| 12 | 10-111522 | BURNER MOTOR | 1 | $586.86 |
| 13 | 10-101403 | FUEL PUMP | 1 | $251.84 |
| 14 | 10-111624 | BURNER TRANSFORMER | 1 | $388.33 |
| 15 | 05-154200 | SOLENOID COIL | 1 | $45.80 |
| 16 | 10-111311 | BLOWER FAN | 1 | $59.91 |

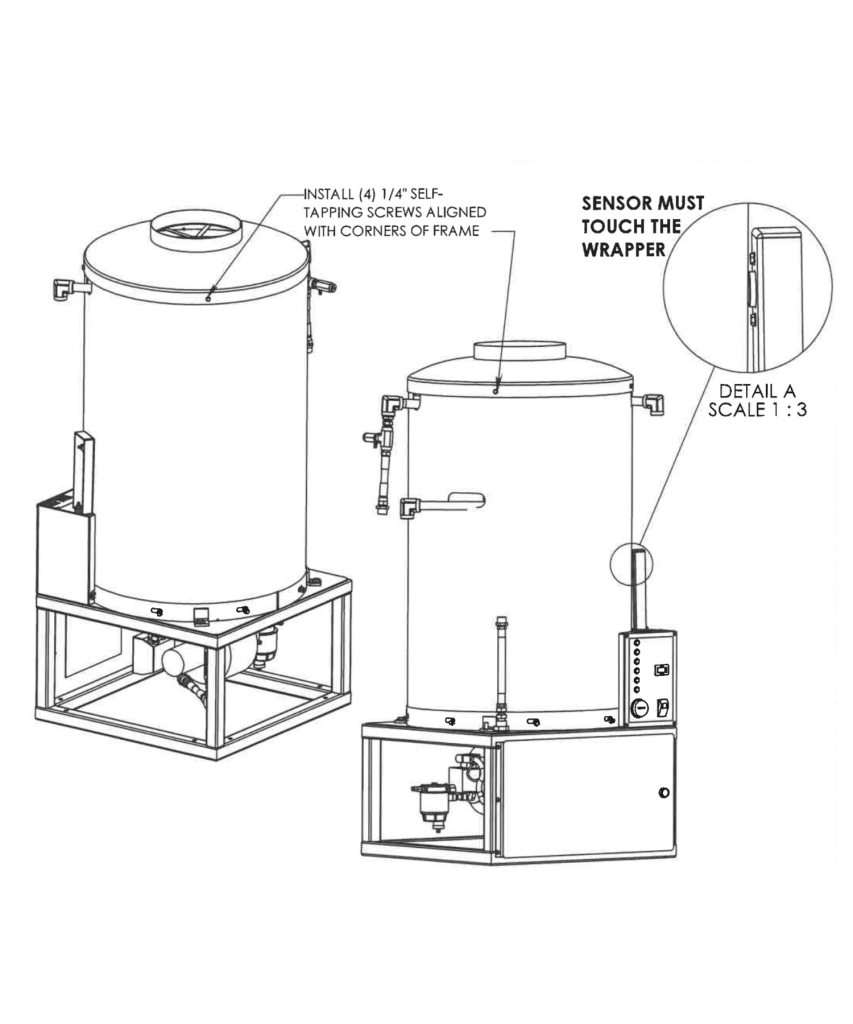

750WH (SP6-0139) Full Assembly Parts
| PART # | DESCRIPTION | QTY | PRICE |
|---|---|---|---|
| 02-101400 | SCREW, TEKS #10-16 x 3/4" | 3 | $0.33 |
| 02-101600 | SCREW 1/4"-14 x 3/4" KWIK | 4 | $0.56 |
| 02-131102* | CAP SCREW 3/8-16 x 3/4 | 4 | $0.04 |
| 02-301300 | 3/8 NUT SERRATED | 4 | $0.17 |
| 02-501300 | WASHER: 3/8" FLAT, ZINC | 4 | $0.08 |
| 02-522200 | POP RIVET | 4 | $0.23 |
| 26-000061 | DECAL: DIAGNOSTIC | 1 | $18.03 |
| 26-101005 | NAME PLATE PRIVATE LABEL | 1 | $8.08 |
| 26-505064* | T-GAUGE BECKETT | 1 | $10.82 |
| B03-0081 | DOOR WELDMENT | 1 | $101.75 |
| B05-0383 | HEATING COIL ASSEMBLY | 1 | $5956.97 |
| B05-0480 | COIL MOUNT WELDMENT | 1 | $94.20 |
| B06-0101* | FRAME WELDMENT (NO LEGS | 1 | $450.19 |
| B06-0216* | HIGH LIMIT MOUNTING BRACKET, 750 WH | 1 | $13.22 |
| E06-0027-4* | CL IN-JCKT OUT 750WH | 1 | $168.89 |
| E06-0066* | COIL OUTLET ASSEMBLY | 1 | $180.99 |
| F06-0067-2* | JACKET INLET ASS'Y 750 WH HPFS SCH160 | 1 | $394.98 |
| F06-0068-1* | ELEC ASSY: OIL 12V 1/2" HPFS 750WH H.L. | 1 | $346.61 |
| G06-0029-5A* | BURNER ASS'Y OIL 12V 750WH | 1 | $2357.62 |
| J06-0001* | PACKAGING ASSEMBLY | 1 | $405.24 |
Please note that parts with * may have a lead time of up to 4 weeks
